Socket

Socket Mobile

Socket Mobile delivers reliable data capture solutions designed to support businesses in retail, healthcare, logistics, and field services. Their range of barcode scanners and RFID readers are built for durability, ease of use, and seamless integration with mobile devices and applications. With a focus on performance and flexibility, Socket products help streamline workflows, improve accuracy, and enhance customer service across industries.

Socket

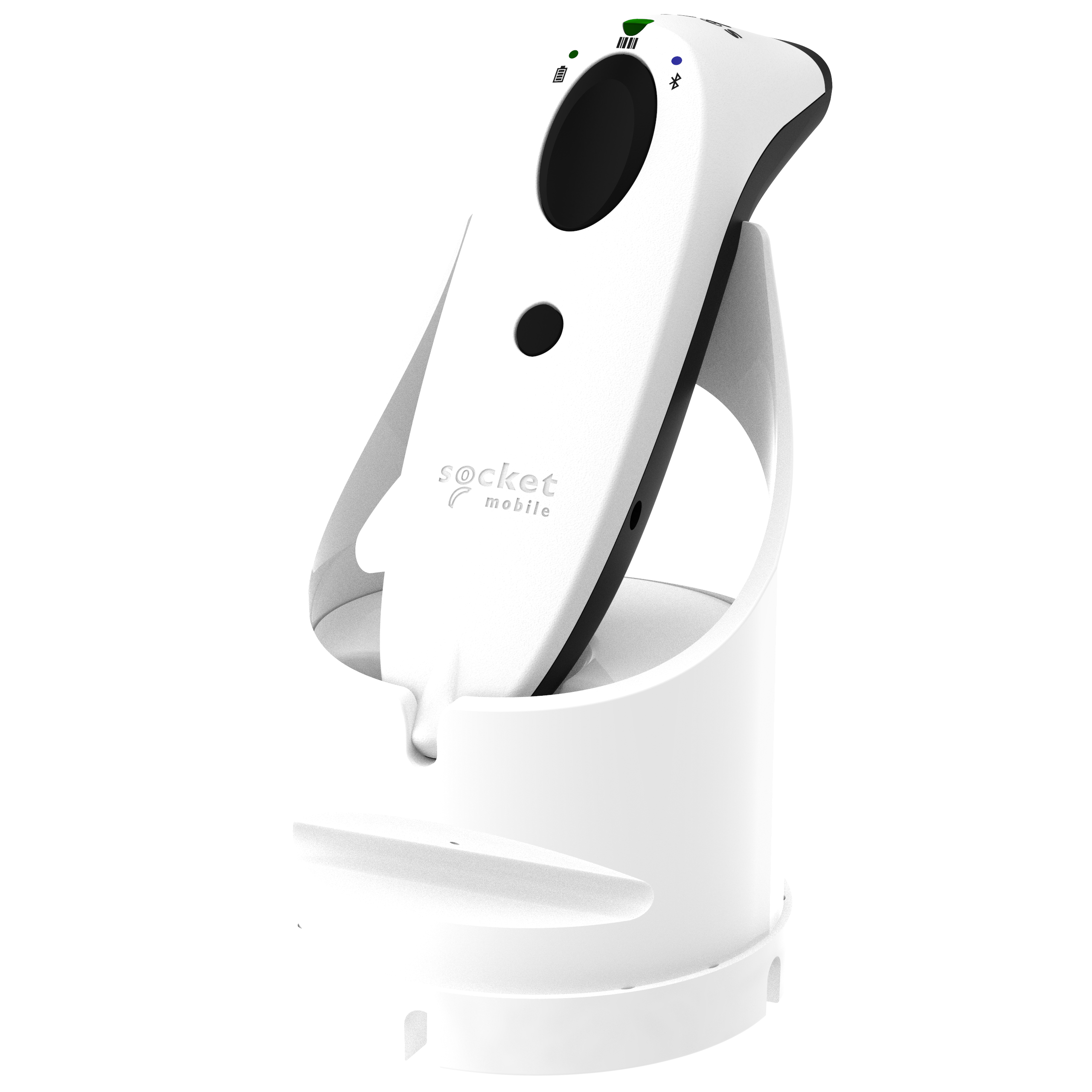

Socket S700 1D Bluetooth Scanner + Charging Dock
Socket

Socket S700 Mobile 1D Bluetooth Barcode Scanner

(:1f539:) How to reset Socket mobile scanner?

Power ON the scanner.
Press and hold the scan button.
Tap the power button once while continuing to press the scan button.
Keep holding the scan button until you hear a beep and then release (about 15 seconds).
Your scanner will beep 5 times and power off.

(:1f539:) How to pair the Socket S720 scanners?

Follow the steps below to connect the Socket scanners via Bluetooth

Power on the scanner. Make sure the scanner is discoverable (unpaired and Bluetooth LED blinking)
Go to Settings > Bluetooth in the host device.
Make sure the Bluetooth is “On” and scan for devices.
In the list of found devices, tap S720 [xxxxxx] to Pair.
The scanner will connect to the host device.
The scanner will beep once after it has connected.

(:1f539:) How to charge the Socket S720 scanner?

Follow the steps below to charge Socket S700, S720 or S740 scanners

Plug in the USB cable and the scanner will beep twice.
The scanner must be fully charged before first use. Please allow 8 hours uninterrupted charging for the initial battery charge.
The scanner will stop charging once the battery is full (No overcharging occurs).

Amber Light = Charging /Green Light = Fully charged

(:1f539:) What is a 2D scanner?

2D barcodes use specific patterns like dots, squares and other shapes such as QR codes and data matrix codes to store data. 2D barcodes are more efficient at storing data. They can store hundreds of characters within a small size.
