Denso BHT-800 Barcode Handy Terminal
Product Description

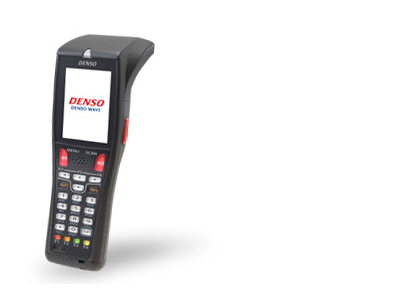

Denso BHT 800 Barcode Handy Terminal
The BHT-800 Series offers outstanding high-speed reading performance. Depending on the model, these devices can achieve up to 400 scans per second. Thanks to the use of CCD technology, even poor-quality barcodes can be reliably read. The high-resolution (QVGA) LCD color display and the unit's ergonomic design make it a pleasure to use. At the same time, DENSO Wave places great emphasis on robust and durable design characteristics. For this reason, the BHT-800 is the only device in its class that has been specified to withstand the impact of 60 falls from 1.2 m.
|
Model |
BHT-805BW |
||
|
Memory |
32 MB (user file area approx. 21 MB) |
||
|
Display |
Size (1) |
240 × 320 dots (QVGA) |
|
|
Inches |
2.6 inch |
||
|
Display device |
Liquid crystal dot matrix color display |
||
|
Scanning system |
Advanced Scan (CCD) |
||
|
Scanner |
Scanning |
420mm MAX. |
|
|
Readable codes |
EAN-13/8(JAN-13/8), UPC-A/E, UPC/EAN with add-on, Interleaved 2 of 5, CODABAR(NW-7), CODE39, CODE93, CODE128(EAN-128), Standard 2 of 5, RSS(GS1-DataBar) |
||
|
Resolution |
0.125mm |
||
|
Scanning confirmation |
3-color LED (red, green & blue), |
||
|
Key pad |
Number of keys |
25 keys (incl. power key) + 2 trigger keys |
|
|
Communications |
Optical I/F |
Communication system |
Infrared (IrDA Ver.1.2 Physical Layer Compliant) |
|
Communication speed |
4Mbps MAX. |
||
|
Transmission distance |
Approx. 0.15m MAX. |
||
|
Wireless I/F |
Standard |
IEEE802.11b/g |
|
|
Wavelength |
2.4 GHz |
||
|
Number of Channels |
13 |
||
|
Transmission distance (2) |
Indoors: Approx. 75 m, Outdoors: Approx. 200 m |
||
|
Modulation system |
Spread spectrum system (direct sequence) Orthogonal frequency division multiplexing |
||
|
Communication speed (2) |
54 Mbps MAX. |
||
|
Access system |
Infrastructure mode, ad-hoc mode |
||
|
Security |
WEP40, 128, WPA-PSK(TKIP), WPA2-PSK(AES), WPA-1x(TKIP/EAP-TLS,PEAP), WPA2-1x(AES/EAP-TLS,PEAP), 802.1x(EAP-TLS,PEAP) |
||
|
Power supply |
Main battery |
Lithium-ion battery |
|
|
Operation hours |
27 hours (3), 20 hours (4) |
||
|
Auxiliary functions |
Clock, speaker, vibration, low-battery indication and remote wake-up function |
||
|
Environment Requirements |
Temperature |
-5°C to 50°C |
|
|
Protection rating |
IP54 |
||
|
Drop resistance (5) |
60 times from 1.2 m |
||
|
Weight (incl. battery) |
Approx. 220g |
||
Notes:
