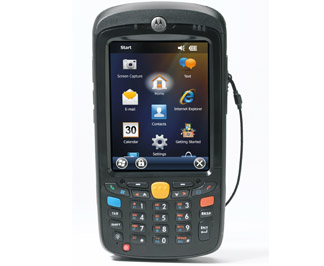

Motorola MC55 AO Mobile Terminal

DRIVE EFFICIENCY INSIDE YOUR BUSINESS TO THE NEXT LEVEL
Give the managers and task workers everything they need to take instant action, anywhere in your facility. Pure business on the inside and smart styling on the outside, the MC55A0 rugged enterprise mobile computer lets your workers access business applications, scan bar codes, snap a photo, view a video and place a private or push-to-talk call to virtually anyone in your facility – all with a single device. The sleek lightweight design is not only pocketable, it is at home in front of customers and patients. And government grade FIPS 140-2 security keeps your most sensitive data safe and secure.

Features & Benefits

HIGH-POWERED PLATFORM

Powerful microprocessor designed for mobility
The Marvell PXA320 @ 806 MHz provides best-in-class application performance coupled with ubiquitous mobility inside the enterprise – even on the most demanding multi-media applications

The memory to support any application
256MB RAM/1GB Flash and a user accessible microSD card slot with support up to 32GB provide the memory space required to enable robust performance for database and other processing intensive applications

The most advanced mobile operating system for the enterprise
Microsoft's Windows 6.5 Mobile Edition increases interoperability with existing enterprise infrastructure; enhances security features; provides a more flexible development platform; improves mobile messaging collaboration

Protects your application investments
Support for Motorola's Enterprise Mobility Developer Kit (EMDK) APIs preserves existing application investments by enabling easy and cost-effective porting of applications from other Motorola mobile computers

ADVANCED WIRELESS CONNECTIVITY

Works on virtually any wireless LAN
The 802.11a/b/g tri-mode radio connects to both 2.4GHz and 5GHz WLANs for cost-effective voice and data connectivity in the office and hot spots; 802.11a (5GHz band) support enables segmentation of voice traffic to ensure voice quality

The most advanced Bluetooth functionality
Bluetooth v2.1 with EDR provides a wireless connection to more device types, including modems, printers, headsets and more; simplifies pairing; improves security; reduces power consumption; supports either Microsoft or Stonestreet stacks

GOVERNMENT GRADE SECURITY OVER VIRTUALLY ANY WLAN

Make sure only authorized users access your devices, your data and your network
Bring wired-line security to your wireless communications without impacting wireless performance through a multitude of security features, including: native FIPS 140-2 Level 1 certification; support for all the latest encryption and authentication protocols; compatibility with Motorola's Mobile Security Suite for device-level protection (device level firewall, intrusion prevention, enforced authentication, data encryption and integrity monitoring protect the data that is resident on and in transit to and from your MC55A0 devices); and compatibility with Motorola Mobile Virtual Private Networks (MVPNs)

THE MOST RUGGED DESIGN

Motorola MAX Rugged for industry leading rugged design – and reliability

• Drop (impact) test: multiple 6 ft./1.8 m drops per MIL-STD 810G
• Tumble (endurance) test: reliable operation after 1,000 1.5 ft./0.5 m consecutive tumbles (2,000 hits) in Motorola's tumble drum
• IP64 sealing: complete protection against dust and splashing liquids
• Patented Monocoque unibody housing: greatly improves structural stability and ability to handle the twisting common in a fall or bump
• Patented industrial-grade connector: improves the reliability and durability of the accessory point of interface
• Improved shock absorption for internal components: a rigid yet lightweight magnesium frame encases the main circuit board and all electronics
• Rugged display construction: space between display and touchscreen helps prevent damage to the display

AUTOMATE THE CAPTURE OF VIRTUALLY ANY TYPE OF DATA

BUSINESS-CLASS MOTION SENSING

Motorola MAX Sensor for the intelligence to sense – and act – on motion
Automatically rotates screen to match; device orientation automatically reverts to sleep mode when not in use to preserve battery power; landscape mode improves the display of data-intensive applications; enables utilization of sensor data in custom applications

ADVANCED ERGONOMICS

Advanced sleek design for ease of use and user comfort
Specifically designed for one-handed operation – data entry is easy regardless of hand size with minimal movement

Crystal clear text and graphics with Motorola MAX Display
3.5 inch extra-crisp PenTile high-resolution color VGA touchscreen display is easy to view in virtually any lighting condition – indoors and outside; additional white pixel improves contrast; energy-efficient engineering delivers twice the brightness at half the power of typical displays

Backwards compatibility with all MC55 accessories
Upgrade to the latest mobile technology advancements while preserving your existing accessory investments

EASY CENTRALIZED MANAGEMENT

Easy global remote management of your devices – and their accessories
Compatibility with Motorola's Mobility Services Platform (MSP) enables comprehensive and flexible centralized management of Motorola and non-Motorola mobile computers and peripherals, anywhere in the world, all from a single console

END-TO-END SUPPORT SERVICES

Increase uptime and reduce support costs with all-inclusive support plan
Optional Service from the Start with Comprehensive Coverage covers normal wear and tear as well as internal and external components damaged through accidental breakage for both device and select accessories

Performance Characteristics
CPU Marvell™ PXA 320 @ 806 MHz processor
Operating System Microsoft® Windows Mobile® 6.5 Classic
Memory 256 MB RAM/1 GB Flash

Color Camera
Resolution 3.2 megapixel Illumination User controllable flash Lens Auto focus
