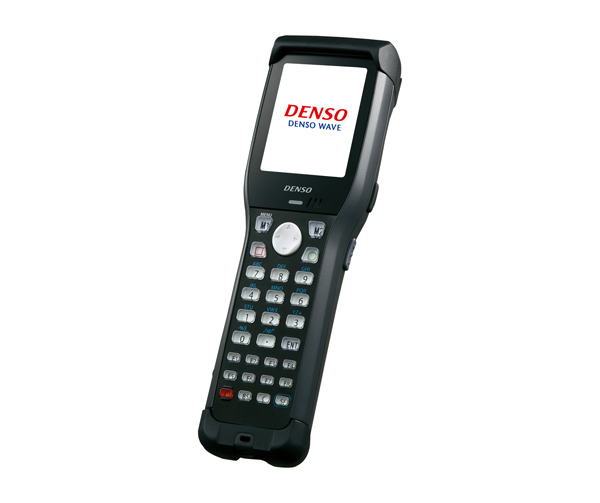

Denso BHT600 Barcode Scanner

The Denso BHT-600 series has been especially developed for the demanding applications in production, logistics and the retail trade. The read performance sets news standards in mobile data capture along with an unmatched long-term operating period

Denso BHT-600 Barcode ScannerHigh depth scanning

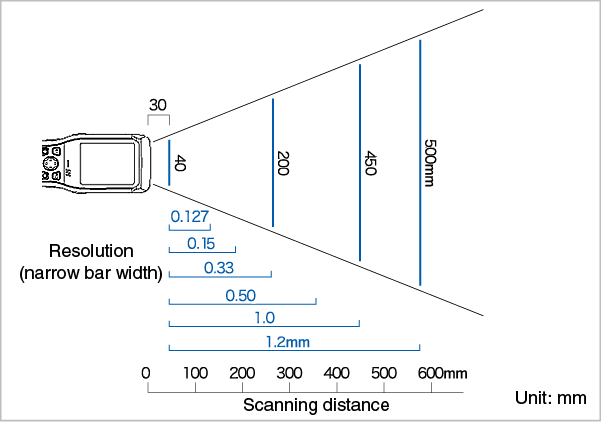

High-depth scanning that is able to support a range of tasks, from close proximity scanning to long range scanning.

Fast scanning
Twice the scanning speed compared with previous models with 100 scan/sec. and high speed decoding

Scanning Angle
From the upper to lower portions of shelves, a 50° scanning angle is set to allow for easy scanning while checking the screen. Work can also be carried on desks without strain.

Display

Large 2.8-inch screen
The large screen allows the display of a variety of data in list format, such as delivery lists.

QVGA colour LCD

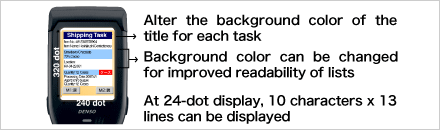

With an icon display for the task menu, intuitive and easy-to-follow screen design is now possible. Company logos, product images and the like can also be displayed.

Sharing of screens with the BHT-7500W
A smooth succession from BHT-7500W screens is possible.

Clear rendering of text
Since scalable fonts are used, text can be displayed in any size. The degree of freedom offered in screen design is expanded considerably. Clear rendering of characters with high stroke counts is possible through grayscale display.

Sharing of screens with other models
Since it features a QVGA screen that is compatible with BHT-200, 400 and 500 series models, the screen design can be shared. Application sharing is also possible with the use of a HTML browser.

Communications

IEEE802.11 b/g support (1)
Support for IEEE802.11 b/g means that multiple BHT units can perform access simultaneously with no decline in response times.

Selectable security levels in line with security policies

Achieves long-lasting 24-hour operation (3)
24-hour operation with wireless on-demand connection. Enables 8-hour continuous operation even with an always-on wireless connection (3).

Durability and Environmental Resistance

Drop resistance performance
Achieves a high level of durability to meet the demands of actual operation using the technology we've acquired as a pioneer in barcode handy terminals.

Strengthened LCD protective plate
The thickness of the LCD protective plate has been increased, offering enhanced impact resistance that is double the strength of previous models.

Environmental resistance
Achieves an IEC international standards protection rating of IP54 through the use of high quality technologies.

Flash file system

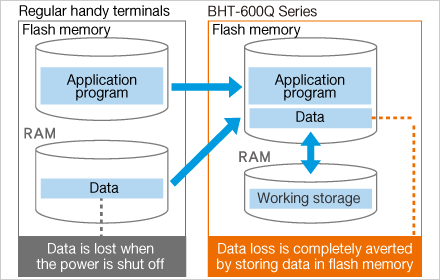

A unique flash file system is employed to prevent data loss by retaining input data even without a battery.

Dimensions
