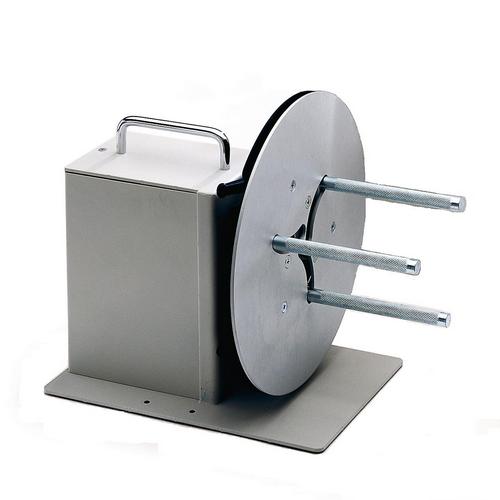

Label Rewinder

This Label Rewinder/Unwinder is capable of rewinding or dispensing label rolls up to 4 inches wide, up to 8 inches in diameter at speeds up to 10 ips (inches per second). It has a precision-crafted Adjustable Core Holder that adjusts in seconds to accept any core diameterfrom 1 inch to 4 inches (25 to 102mm). You can also do coreless rewinding.

This rewinder uses Constant Adjustable Torque technology to achieve impressive, reliable performance at an unprecedented low price. A special motor, designed specifically for this unit, it offers bi-directional operation and trouble-free performance. A switch conveniently controls the amount of rewind force. No awkward tensioning arms, troublesome belts, or clutches are used and no speed adjustments are required.
This rewinder automatically adjusts to any printer speed up to 10 ips and even automatically allows label back-feeding if your printer requires it.

This unit has an inner label flange to keep the edge of the label web aligned as the labels are being rewound. Rugged steel construction allows this unit to simply be set in place near your label printer. Special anti-slip feet prevent the unit from moving.

Specifications

DESCRIPTION REW1 for 1" to 4" cores (25 to 100 mm)
LABEL WIDTH Up to 4.5-inches (113 mm). Maximum Label Roll Weight: 8.5 lbs. (3.9 kg)
ROLL DIAMETER 8" (200mm)
MAX SPEED 10 ips (250mm/sec.)
LABEL ROLL DIAMETER Up to 8-inches (200 mm)
CORE DIAMETER Use any cardboard core from 1- to 4-inches (25 to102mm) in diameter
SPEED Up to 10-ips (25+ mm/sec). Switch adjustable rewind force. No speed adjustments are required
START/STOP Convenient ON-OFF switch
DIRECTION Bi-directional
POWER REQUIREMENTS 120vac 60Hz. UL / CSA or 220vac 50 Hz. CE Listed Power Supplies
DIMENSIONS 9H x 6W x 11D" (229 x 152 x 279 mm). Weight: 13 lbs. (5.9 kg)
WARRANTY Limited 3-Year Parts and Labor Warranty. (One [1] Year Limited Warranty on included Power Supply Module)

For further information call 1300 800 999
