Datamax REW2 Rewinder

Price:

Call 1300 800 999 (ex GST)

SKU:

DMXREW2

Brand:

Datamax

Weight:

N/A

Product Description

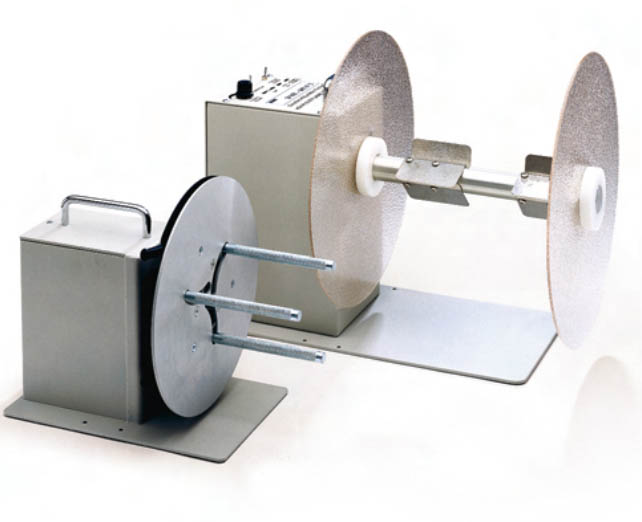

Datamax DMXREW2 Rewinder

The Constant Adjustable Torque technology makes the DMXREW2 silent and easy-to-use. No awkward tensioning arms, troublesome belts or clutches are used. Instead a powerful direct drive motor, designed especially for the DMXREW2, and driven by advanced control circuitry, ensures constant, uniform rewind torque. The result is a short leader length, exceptionally easy threading, no speed adjustments, trouble-free performance, and unsurpassed reliability!

A Torque Control knob allows you to set precisely the amount of rewind force desired. The bi-directional DMXREW2 adjusts automatically to any printer speed and even allows for back-feeding labels if your printer requires it. The DMXREW2 Rewinder can also be used as a label Unwinder.

The DATAMAX Heavy-Duty Rewinder is designed for continuous duty operation in rugged environments. Maximum label widths of 9-1/2". The DMXREW2 handles any rewind job and with its "HIGH" torque range can also be used with slitters.

Rugged heavy steel, industrial quality construction allows the DMXREW2s to be simply set in place. Special anti-slip feet prevent the units from moving. Reliable, high quality and maintenance-free, the Heavy-Duty DMXREW2 Label Rewinders feature a Limited 3 Year Parts and Labor Warranty, the longest in the industry. With a DMXREW2 Label Rewinder working for you, you will enjoy a new dimension in label rewinding convenience and reliability

Specifications

DESCRIPTION REW2 for labels up to 9.5" wide. For 3" cores
LABEL WIDTH Up to 9.5"
ROLL DIAMETER Up to 12"
MAX SPEED Up to 30 ips; bi-directional
TORQUE ADJUST Continuously adjustable torque and braking control
TORQUE RANGE NORMAL (REWIND), HIGH (SLIT); "EXTERNAL HALT CONTROL" – External control removes power to the motor and applies braking
DIMENSIONS 12.75H x 15W x 12.5D" (324 x 381 x 318mm)
BASE PLATE FOOTPRINT 7 x 15" (180 x 356mm). Weight: Approximately 23lbs (10.5kg)
POWER REQUIREMENTS 120vac 60Hz 50 va. UL Listed Power Supply Or 240vac 50 Hz CE Power supply
WARRANTY Limited 3-Year Parts and Labor Warranty. (One [1] Year Limited Warranty on included Power Supply Module
